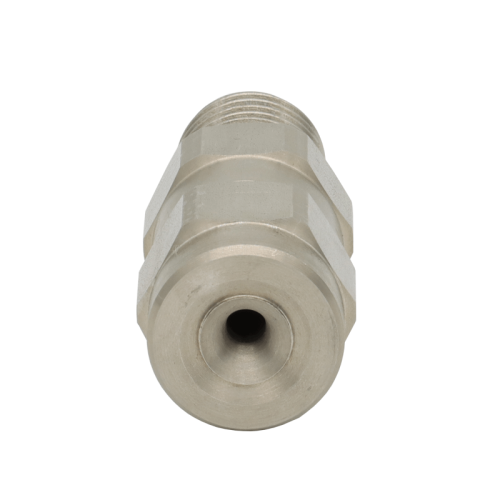

Wide Angle Full Cone Spray Nozzles For Industries
Brand: Jeltecn
Type: BB
Material: 303SS/316SS/BRASS
Spray Angle: 43°-125°
Thread Size:1/8″, 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2
Thread Type: BSPT, NPT, Male, Female
MOQ: 1PCS
Product Description
Description
Wide angle full cone spray nozzles characteristic is that it can produce a solid cone spray shape with a spray angle of 43–125 degrees. Provides a uniformly distributed wide-angle full cone spray shape, which is widely used in various workplaces with high coverage uniformity requirements.
The excellently designed X-shaped spoiler blade makes the square solid cone nozzle both difficult to block and uniform. It can maintain excellent atomization uniformity even in the case of super large spray volume.
Wide-angle full cone spray nozzle produce evenly distributed, medium to large drop size sprays over a wide range of pressures and flow rates.
Uniform spray distribution comes from the unique vane design, large and unobstructed flow channels and advanced spray flows control features.
Wide angle full cone spray nozzles are ideal for installation in jet applications where complete coverage of an area is required for excellent results
Wide angle full cone spray nozzles are made of stainless steel and have a long service life.
Narrow, square, and wide-angle full cone spray nozzles are special angle hydraulic nozzles. They are variants of standard angle nozzles, but they relate to more specific applications. This spray mode is commonly used in a variety of industrial applications because it allows the liquid to be evenly distributed over the surface. Jeltecn nozzles are available in a variety of different angles, we are able to ensure that you find the right nozzle and ideal range for your industry, from small to medium spray capacity.
Advantages
- Professional industry spray nozzle with over 15 years of experience.
- Complete QC system and strong after-sales concept.
- 3 R&D Engineers with over 10 years of experience.
- ISO9001:2015/SGS/CE certification.
- Third-party audit.
- Fast delivery.
- Accept OEM/ODM
Specs
| Brand | Jeltecn |
| Nozzle Type | BB, BBG |
| Thread Size | 1/8″, 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2 |
| Spray Angle | 40°-115° |
| Spray Pattern | Full Cone |
| Thread Type | BSPT, NPT, Male, Female |
| Orifice Dia. (MM) | 1.6-31.8 |
| Water Pressure | 0.3bar-10bar |
| Capacity(L/H) | 0.93L-1230L |
| Material | Stainless Steel/Brass |
| Packaging | Carton |
| Certificates | ISO9001/SGS/CE |
| Payment Terms | T/T, Western Union, Paypal |
Application
■ Washing and rinsing process.
■ Quenching and cooling of coke, primary metals, and other materials.
■ Suppresses fugitive dust during the processing of bulk ore, coal, limestone, sand, and gravel.
■ Scrubbing and cooling of exhaust gases to remove fly ash and other combustion products.
■ Flood flammable materials and storage boxes to achieve the purpose of fire fighting.
