Keeping your misting nozzles clean is crucial for optimal performance. Clogged nozzles lead to uneven misting patterns, reduced cooling efficiency, and higher operating costs. In this definitive guide, as a professional misting nozzles supplier, I’ll walk you through the entire process of cleaning misting nozzles, from start to finish.
Why Clean Misting Nozzles?
Here are some key reasons for periodically cleaning your misting nozzles:
- Restores optimum misting performance
- Unclogs blocked holes for even coverage
- Allows proper atomization of water
- Reduces operating costs by lowering water usage
- Extends system and nozzle longevity
- Prevents algae and mineral buildup
- Improves cooling efficiency for better yields
- Maintains aesthetic appeal
How to Clean Misting Nozzles?
The first step is removing the nozzle from the misting system. Then, disassemble the nozzle if possible to fully expose the nozzle openings. Next, prepare a cleaning solution and submerge the nozzle to soak. After soaking for at least an hour, rinse thoroughly before reassembling and reinstalling the cleaned nozzle. Finally, flush the misting system.
Here is a more detailed step-by-step process:
Step 1: Remove the Nozzle
Switch off the misting system and locate the clogged nozzle. Carefully unscrew it from the tubing or nozzle line. Take care not to damage the threaded fittings.
Step 2: Disassemble the Nozzle
Based on the nozzle design, you may be able to unscrew a cap or protective cover to access the nozzle openings. Check manufacturer guidelines before attempting to take apart the nozzle.
Step 3: Prepare Cleaning Solution
Mix white vinegar or a commercial descaling product like CLR with water in a container. Use a 1:1 ratio for heavily clogged nozzles. Dilute further for mild buildup.

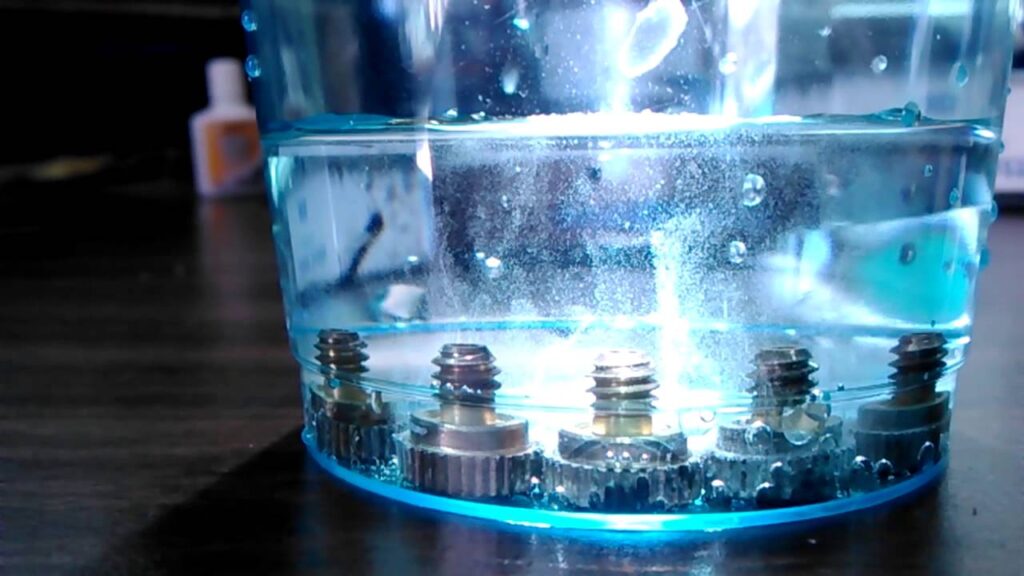

Step 4: Soak the Nozzle
Place the nozzle tip-down in the cleaning solution. Ensure the solution makes full contact with the clogged openings. Let it soak for 1-2 hours until the calcium deposits dissolve.
Step 5: Rinse Thoroughly
Remove the nozzle from the solution and rinse under running water. Use a soft-bristle brush to gently clear any remaining debris around the nozzle openings.
Step 6: Reassemble and Reinstall
If you disassembled the nozzle, carefully piece it back together per the manufacturer guidelines. Replace any worn out O-rings before reattaching the nozzle to the mist line.
Step 7: Flush the Misting System
Switch the system back on and run it for a few minutes. This clears any residual cleaning solution from the pipes and ensures proper flow.
How Often Should You Clean Misting Nozzles?
Nozzle clogging depends on water quality, system runtime, and ambient temperature. Here are some general frequency guidelines:
Soft or filtered water – Clean once every 3-4 months
Hard well water – Clean every 6-8 weeks
Continuous operation – Clean every 2-3 months
Seasonal systems – Clean at startup and shutdown
Check manufacturer specs for any additional care recommendations. Visually inspect nozzle spray patterns while system runs to check for clogs.
What’s the Best Way to Clean a Misting Nozzle?
While the vinegar soak method works well for most buildup, some stubborn clogs call for a more hands-on approach. Here are a few effective options:
- For loose deposits, use a soft-bristle pipe cleaner to gently clear the nozzle openings. Don’t scratch the surface.
- For hard water scale, try an ultrasonic jewelry cleaner. The high-frequency vibrations can disintegrate calcium deposits.
- Use a needle or wire to carefully poke through a severely blocked tip from the inside, dislodging any stuck particles.
- As a last resort, replace overly corroded or damaged nozzles. A variety nozzle pack offers affordable replacements.
Help! My Mister Is Still Clogged After Cleaning
If your mister nozzle remains clogged even after a thorough cleaning, the issue could lie further up the line. Here’s how to troubleshoot:
- Remove tubing and check any inline filters. Clean built-up debris from reusable filter screens.
- Flush all mist lines with white vinegar to dissolve mineral deposits within the pipes.
- Backflush the system by temporarily reversing water flow direction to dislodge stuck particles.
- Check for kinks in the poly tubing which could obstruct nozzle water flow.
- If on a well water system, inspect the pump intake filter and clean out any gunk trapped around the valve fittings.
- Consider installing a water softening system if on a hard water supply to reduce scale buildup within the misting equipment.
Properly Store Misting Nozzles In The Off-Season
For seasonal systems, treat nozzles with care before packing them away for storage:
- Rinse nozzles clear of any cleaning solutions which could interact with component materials
- Fully air-dry all parts instead of towel drying to prevent lint contamination
- Replace worn O-rings with fresh spares to maintain the watertight seal
- Store nozzles in sealed bags or slotted cases to avoid dust buildup
Following these storage tips prevents off-season corrosion and saves time bringing equipment back online next season.
FAQs About Cleaning Misting Nozzles
How do I remove O rings from misting nozzles?
Use a small flat head screwdriver. Gently insert between the O-ring and nozzle fitting. Carefully pry upwards to pop the O-ring free without damaging the ring or surface.
Can I use a wire brush to clean mist nozzles?
No. Wire brushes quickly wear down the precise openings of misting nozzles. Use a soft bristle nylon brush and moderate hand pressure instead.
What solution ratio should I mix to clean misters?
For heavy buildup, use equal parts water and white vinegar/cleaner. For maintenance cleaning, dilute to 1 part solution for every 3-4 parts water.
How long do misting nozzles last?
With proper care and maintenance, quality brass misting nozzles can operate reliably for 5+ years before needing replacement. Check tips every season for wear.
The Bottom Line
And there you go – everything you need to keep your misting nozzles in great working condition! Proper cleaning and storage pays dividends through optimized performance. Implementing a consistent nozzle care regimen helps commercial operations save on utility bills and protects valuable crops. For home misting systems, clean nozzles mean better patio cooling and ambient comfort. Stay tuned for more misting and irrigation insights!
