Misting nozzles are a key component of many misting systems used for cooling and humidification purposes. However, they can easily get clogged with mineral deposits, sediment and debris over time.
Unclogging misting nozzles is vital for ensuring optimal performance. Clogged nozzles negatively impact spray quality, flow rate and coverage area.
Fortunately, clearing out mist nozzle blockages is a straightforward process. As a professional sisleme nozulları tedarikçisi, I am writing this comprehensive guide to walk you through various methods for effectively unclogging misting nozzles.
Why Do Misting Nozzles Get Clogged?
Before learning how to fix clogged mist nozzles, it’s important to understand what causes them to get blocked in the first place.
The main culprits are:
Maden Yatakları
Hard water contains high levels of minerals like calcium and magnesium. As the water passes through the narrow nozzle openings, these minerals are deposited along the internal surfaces.
Over time, this sediment accumulation impedes water flow, resulting in uneven spray patterns.
Suspended Particles
Small pieces of debris and contaminants present in the water supply lines can make their way into the nozzles. These suspended particles eventually get trapped and congest the tiny nozzle orifices.
Chemical Precipitates
Certain chemicals used for disinfecting misting system components can leave behind insoluble residues when not adequately flushed out. These precipitates settle inside the nozzles over repeated usage.
Biological Growths
Algae, bacteria and fungi thriving inside humidification reservoirs and tubing might break away and move towards the nozzles. These organisms can multiply further within the dark, moist interiors of a clogged nozzle.
How To Unclog A Misting Nozzle?
Unblocking a mist nozzle is easy with the right techniques. Here are 6 methods to effectively clear out congested misting nozzles:
1. Tap The Nozzle
- Remove the misting nozzle from the assembly.
- Tap the nozzle lightly on a hard surface to dislodge any loose debris.
- Try blowing compressed air through the nozzle openings.
This simple physical agitation clears out freshly deposited sediments that haven’t hardened or chemically bonded to the interior walls yet.

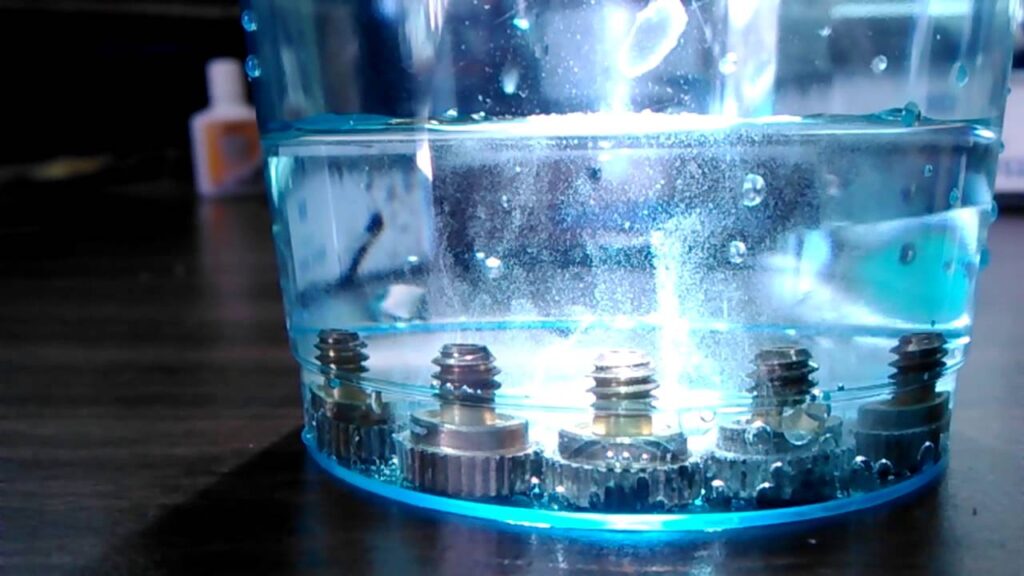

2. Soak in Vinegar
- White vinegar is an excellent solvent for dissolving most mineral accretions.
- Remove any O-rings or rubber gaskets on the nozzle exterior.
- Immerse the nozzle tip in pure vinegar for 45-60 minutes.
- Rinse thoroughly under running water.
The acetic acid in vinegar disintegrates calcium carbonate and magnesium deposits. It’s especially useful for cleaning nozzles in humidifiers and misting systems that use hard water.
3. Use CLR Solution
- CLR stands for Calcium, Lime and Rust cleaner.
- Add 1 part CLR to 2 parts warm water and soak the mist nozzle for 1 hour. CLR will dissolve and loosen mineral deposits.
- Rinse with clean water and reinstall the nozzle.
CLR is stronger than vinegar, making it ideal for removing stubborn hard water buildup and corrosion inside severely clogged misting nozzles.
4. Ultrasonic Cleaning
- Ultrasonic cleaners work by sending high-frequency sound waves through liquid solvents. This agitation dislodges grime from intricate crevices.
- Remove any exterior gaskets or seals from the nozzle.
- Fill an ultrasonic bath with diluted CLR solution and switch it on for 5-10 minutes with the nozzle immersed. The ultrasonic waves will blast away mineral accretions and debris.
Ultrasonic treatment rapidly rehabilitates the performance of misting nozzles congested with years of limescale accumulation.
5. Scale Remover Pouches
- These permeable pouches contain citric acid that gradually diffuses into the water, eliminating scale deposits.
- Place a pouch with misting nozzles into a bucket filled with warm water for 8-12 hours.
- Remove and install the renewed nozzles.
Scale remover pouches offer a simple, mess-free way to decalcify heavily blocked misting equipment. Their slow-release formula prevents corrosion.
6. Replace Nozzle Filter
- Clogged nozzle filters prevent proper water flow. This commonly occurs in mist cooling systems.
- Unscrew the nozzle, remove the blocked filter mesh, rinse thoroughly and reinstall or replace with a new filter screen.
Keeping mist nozzle filters clean is necessary for optimal spray patterns. Otherwise, the obstructed water flow exacerbates mineral precipitation issues.
Steps For Cleaning Misting Systems
While the nozzle is the most likely component to get clogged, pay attention to the entire misting system during routine maintenance:
- Drain reservoirs completely and scrub away any biofilm accumulation within the tanks that supply water to the nozzles.
- Check tubing and piping for algae or mold growths. Clean out with bleach solution if contamination is visible.
- Examine pumps and filters – Replace old or defective pumps that can’t generate adequate pressure. Clean out congested inline or pressurized filters.
- Flush with descaling solution – After reassembling the system, flush the pipes with CLR to remove mineral residues before resuming regular usage.
Establishing a comprehensive cleaning protocol enhances the longevity of the misting equipment and nozzles.
FAQs About Clogged Misting Nozzles
How do I remove stuck o-rings from misting nozzles?
Apply rubbing alcohol on the o-ring and use a small flathead screwdriver to gently pry it loose. Avoid using sharp metal tools that could scratch the nozzle surface.
Why is my mister not spraying water?
Faulty pumps, restricted filters or crimped tubing prevents water from reaching the nozzles. Check the feed lines for kinks and smooth out the piping if required. Examine the system starting from the water inlet point through to the nozzle.
Can I use muriatic acid to clear clogged mist nozzles?
While effective, muriatic acid is unsafe for DIY unclogging. The fumes can quickly corrode metal components. Opt for less hazardous solutions like vinegar or citric acid cleaners.
How often should I clean the misting nozzles?
Misting systems with hard water sources require monthly flush outs. For filtered, distilled or RO water, clean nozzles once every 2-3 months. Immediately address any flow irregularities rather than waiting for the next schedule.
Why is mist uneven after replacing nozzle filters?
The new filter mesh is likely misaligned or protruding into the water outlet zone, obstructing uniform dispersion. Remove and reseat the filter, ensuring it fits completely flush within its designated crevice.
Sonuç
Clogged misting nozzles are unavoidable when operating humidification and cooling systems continuously.
Mineral scales, debris and biofilm gunk can rapidly congest the tiny nozzle orifices, leading to spotty, uneven spray coverage.
Fortunately, most blocked nozzles can be easily revived through periodic maintenance procedures like acid soak immersions or scale remover pouches.
Catching the issue early and maintaining the nozzles is vital for sustaining peak performance. This keeps expensive replacements to a minimum while also enhancing the lifespan of the entire misting equipment.
Implementing a comprehensive cleaning protocol for the tubing, reservoir and inline filters further maximizes operational uptime.
